200 Watt Solar Panel Kit 12V Monocrystalline Solar Panels with 30A PWM 12V/24V Charge Controller 2 Pair Solar Panel Cables Connectors Brackets for RV Boats Trailer Marine Home Off-Grid System

Price: $189.99
(as of Jun 02, 2024 14:52:37 UTC – Details)

Product Description

JJN 100w Solar Panel 12V makes of Grade A+ monocrystalline, The solar cells for up to 22% of the max efficiency and add bypass diodes to this 100 watt solar panel, which can minimize power drops caused by shade and ensure excellent performance in low-light environments.

12v 100 Watt Solar Panel Specifications

Maximum Power: 100WOpen-Circuit Voltage (Voc): 24.3 VShort-Circuit Current (Isc): 5.21 AOptimum Operating Voltage (Vmp): 20.4 VOptimum Operating Current (Imp): 4.91 A

Step One

Connect PWM controller and battery.(Please note: the screen has no backlight)

Step Two

Connect the solar extension cable to the controller. Tips: One end of cable needs to be cut with scissors to leak out the copper wire and connect.

Step Three

Finally, connect the extension cable to the connector of the solar panel.

Step Four

Check that the entire off-grid system is properly installed.

Solar Charge Controller The meaning of the error reported by the solar charge controller

As for E06-E12, they mean as follows( it can apply to all charge controllers):

E06: PV input over voltage protection/E07: No PV input E11: battery low voltage protection/E12: battery over voltage protectionE13: Over load protection /E14: Load short circuit protection E15: Over heat protection/E16: PV input over voltage protection

100W/200W/300W Solar Panel Kit

Charge Controller

12V/24V 20A PWM Charge Controller

Charge Controller

12V/24V 30A PWM Charge Controller

Charge Controller

12V/24V 40A PWM Charge Controller

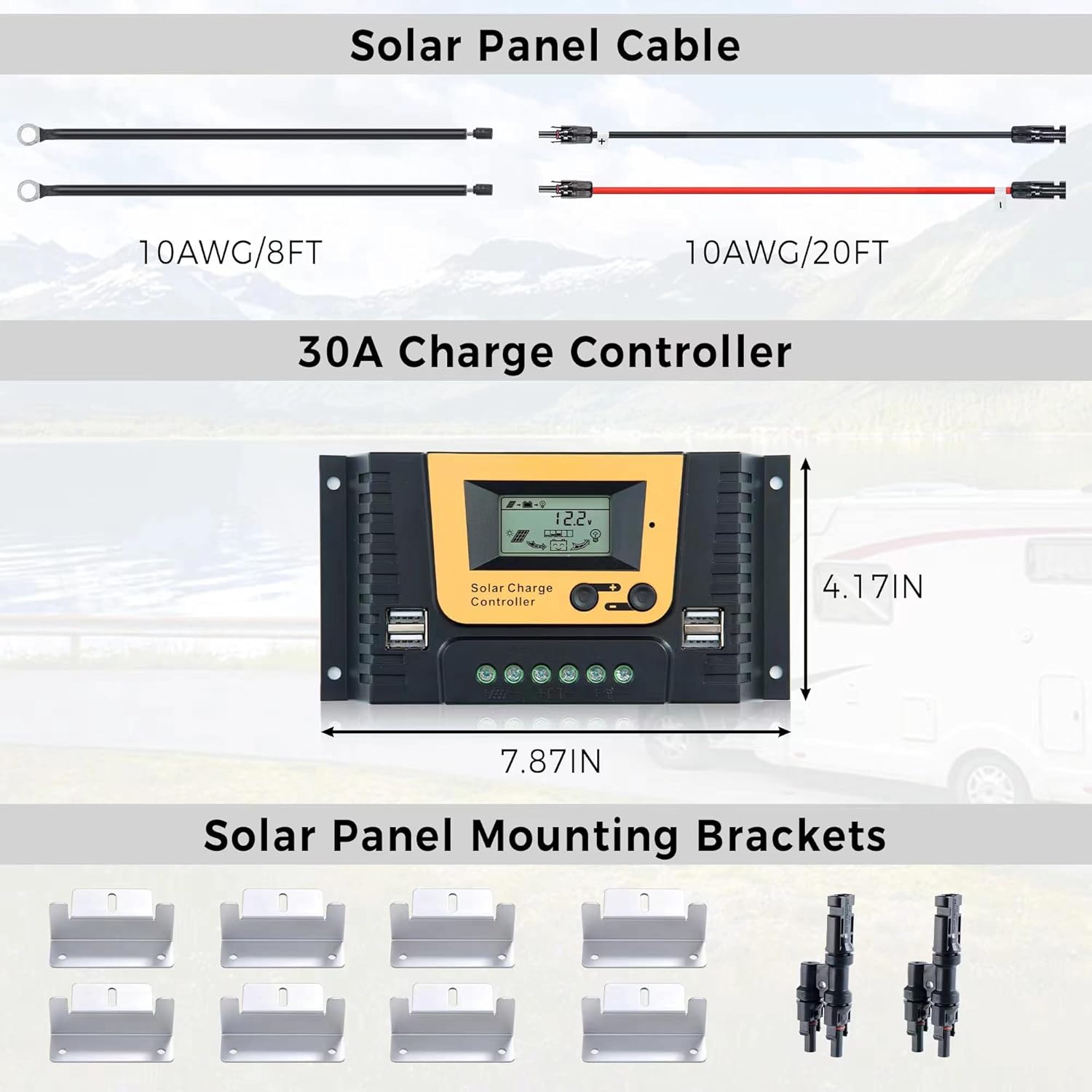

Solar Panel Cables

1 PairTC Wire: 8FT 12AWG + 1 Pair Extension Cable: 20FT 12AWG

Solar Panel Cables

1 PairTC Wire: 8FT 10AWG + 1 Pair Extension Cable: 20FT 10AWG

Solar Panel Cables

1 PairTC Wire: 8FT 10AWG + 1 Pair Extension Cable: 20FT 10AWG

Solar Panel Mounting Backets

1 Set (4 Pieces) Z Brackets

Solar Panel Mounting Backets

2 Set (8 Pieces) Z Brackets + One Pair 3 Way Connector

Solar Panel Mounting Backets

3 Set (12 Pieces) Z Brackets + One Pair 4 Way Connector

You May Need

Energy Storage

1280WH

Power Input

1000W

Support Solar Panel

100-350W

Performance

High Efficiency

Performance

High Efficiency

Performance

N/A

Widely Application

[High Efficiency]JJN 300w solar panel kit adopt the 9BB solar panel cell design and are made of excellent Grade A+ cells. The conversion rate is as high as 22% and each solar panel can provide about 1500 Wh of electricity per day (depending on sun availability). It has better quality and efficiency than 5BB and Grade B solar panel cells.
[Upgraded Design]JJN monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.
[Easy to Installation]Each 12 Volt solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with JJN’s Z mounting Brackets in the kit. At the same time, we are equipped with two pairs of wires, which can easily connect solar panels, controllers and external batteries. There is no need to choose additional wires.
[What You Get]JJN 300 watt solar panel kit are very friendly to starters. The included 40A charge controller can make this solar system suitable for different 12V batteries, such as Wet, Gel, MF, EFB, and AGM. It can be applied to RV, Camper, boat and home green energy storage.
[Long Warranty]As a professional solar system manufacturer, We promise an extra-long transferable power output warranty of 25 years. Whenever you encounter any problems, JJN Solar Panels Service will actively provide you with professional off grid system solutions.
