300W 12V Solar Panel Kit for RV, Trailer, Camper, Marine, Off Grid| 3pcs 100W Solar Panel, 40A PWM Solar Charge Controller,100Ah Lithium Battery + 1100W Power Inverter

Price: $699.99
(as of Jun 28, 2024 21:42:47 UTC – Details)

Product Description

Solar system construction steps:

1. Connect battery to controller 2.Connect solar panels to controller 3.Connect inverter to battery

1100 Watt Inverter Specifications

Continuous Output Power 1100w Surge power 2000w Input Voltage DC 12V Output Voltage AC 110V Output Frequency 60Hz± 0.1% Low Battery Alarm 10 Volts ± 0.5 Volts Low Battery Shut-off 9.5 Volts ± 0.5 Volts Wave Form Modified Sine Wave Efficiency ＞85% USB Output Current 5V 2.1A USB Ports Dimensions 10×8.07×3.45 inch Weight 5.5 lbs

1 HOW TO WORK 2 INTELLIGENT COOLING FAN 3 DURABLE ALUMINUM ALLOY 4 REMOTE CONTROL 5 WIDE APPLICATION

12v 100 Watt Solar Panel Specifications

Maximum Power: 100WOpen-Circuit Voltage (Voc): 24.3 VShort-Circuit Current (Isc): 5.21 AOptimum Operating Voltage (Vmp): 20.4 VOptimum Operating Current (Imp): 4.91 A

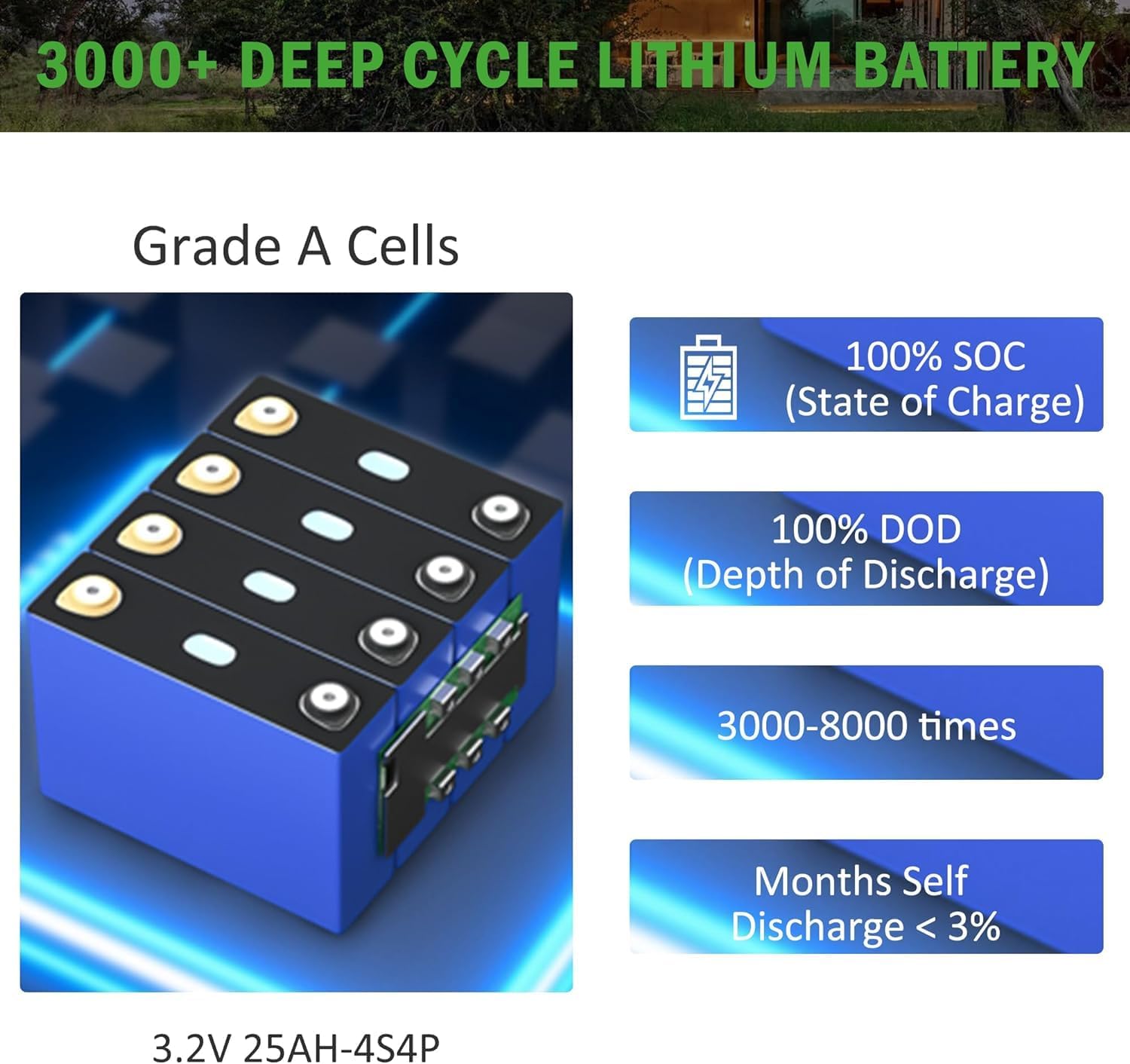

JJN 100Ah 12V LiFePO4 Deep Cycle Battery 100% USABLE ENERGY FOR LONGER RV TRIP WHY CHOOSE JJN BATTERY

Lithium Iron Phosphate Battery Specifications

Nominal Capacity 100Ah Nominal Voltage 12.8V Cycle Time 3000-8000 Times Charge Voltage 14.6 ± 0.2V Charge Current 50A Max.Charge Current 100A Max.Pluse Current 300A(<3s) Discharge Cut-off Voltage 10V Charge Temperature 32℉~113℉ Discharge Temperature -4℉~140℉ Storage Temperature 14°F~95°F Lifespan 10 Years Dimension 12.6 X6.3 X 7.87 IN Weight 24.3 lbs

JJN 40A PWM Solar Charge Controller

Battery Voltage/System Voltage: 12V/24V/36V/48V Auto

Max PV Open Circuit Voltage: 100V

USB Output: 5V/2A×2

Operating Temperature: -4℉~+122℉ （-20℃~+50℃)

Terminals: 10AWG/3.332m㎡

[High Efficiency]JJN 300 watt solar panels kit adopts the 9BB solar panel cell design and is made of excellent Grade A+ cells. The conversion rate is as high as 22% and each solar panel can provide about 500 Wh of electricity per day (depending on sun availability). It has better quality and efficiency than 5BB and Grade B solar panel cells.
[Deep Cycle & Super Long Lifetime] JJN 12V 100AH LiFePO4 batteries can provide up to 8000 cycles, while lead-acid batteries are 300~500 cycles. This battery has a lifespan of more than 10 years, 5 times that of standard lead-acid batteries.
[Built-In 100A BMS & Low Temp Protect]JJN 100AH LiFePO4 battery has built-in BMS to protect it from overcharge, over-discharge, overcurrent, and short circuit with excellent self-discharge rate. The low temperature protection function allows you to not worry about the damage to the battery caused by the outdoor temperature.

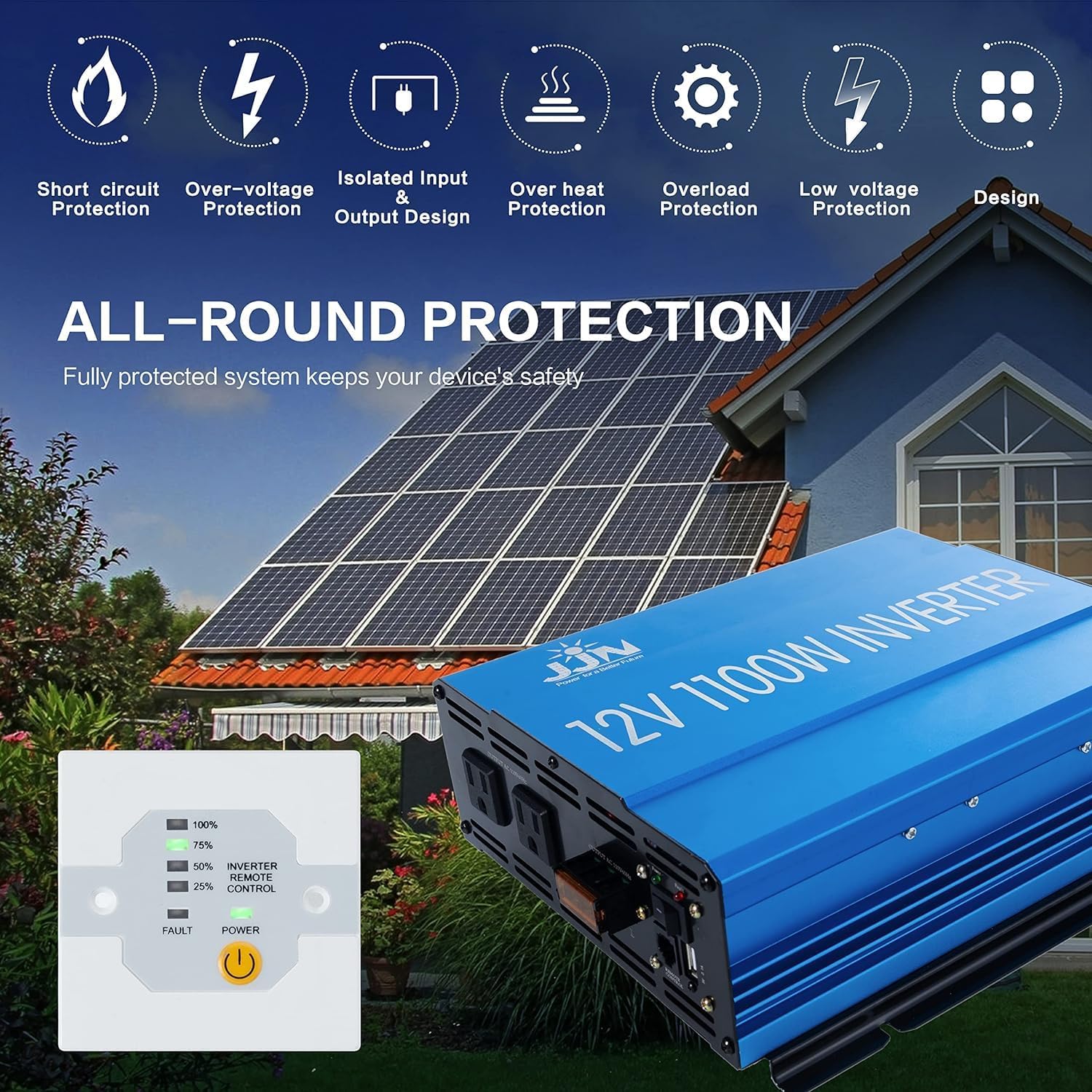

[110v to 12v converter] Provides 1100W continuous power and 2000 watts of peak power, Modified Sine Wave Car Inverter converts 12V DC to 110V AC Power, It can be connected to any common electrical equipment (including televisions, LCD monitors). Meet the electricity demand of 99.99% of the products in the market.
[What You Get]JJN 12v 300w solar panel kit included 3pcs 100w 9BB solar panel,40A PWM charge controller,100Ah Lithium battery,1100W power inverter. It can be applied to RV, Camper, boat and home green energy storage.
